Falcon-Stainless Steel Flex Connectors
Falcon 3/4" I.D. Stainless Steel Flex Connector with 3/4" FIP
Falcon 1" I.D. Stainless Steel Flex Connector with 1" FIP

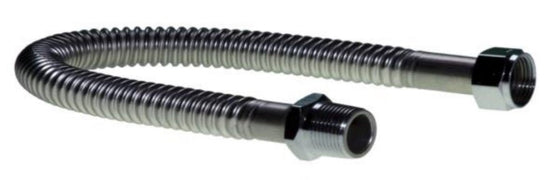

Falcon (FM1) 1" I.D Stainless Steel Flex Connector with 1" FIP x 1" MIP
Falcon 1 1/2" I.D. Stainless Steel Water Flex Connector with 1 1/2" FIP
Falcon 1" x 3/4" x 3/4" ID Stainless Steel Water Flex Connectors
Falcon 2" I.D. Stainless Steel Flex Connector with 2" FIP
Falcon Stainless Steel Flex Connectors
Three Core Configurations

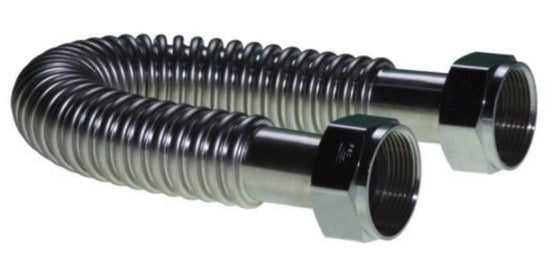

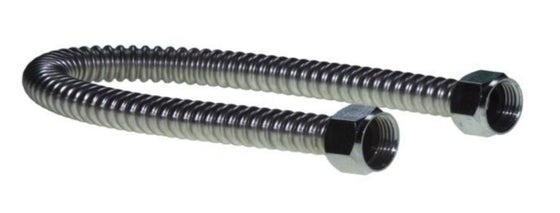

Standard FIP Connectors
Female iron pipe threads on both ends accommodate the most common water softener and filtration system installations. Available in 3/4", 1", 1-1/4", and 1-1/2" internal diameters with matching thread sizes for straightforward connections.

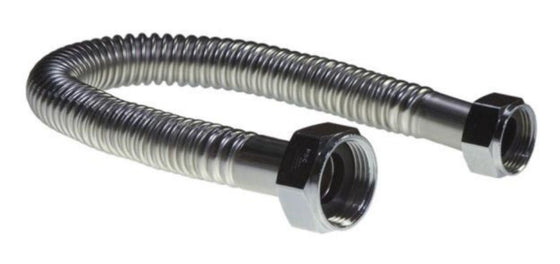

Reducing Adapters
Purpose-built for mismatched pipe sizes, these connectors feature different thread dimensions at each end. Common configurations include 1-1/4" FIP to 1" FIP and 1" FIP to 3/4" FIP, allowing you to connect systems without additional couplers or bushings.
Custom Terminations
Specialized variants include compression fittings and mixed thread types for challenging retrofit situations. The corrugated stainless construction provides flexibility while maintaining full pressure ratings across all configurations.
Material and Construction Details
| Specification | Detail |
|---|---|
| Material Grade | 304 Stainless Steel (18% chromium, 8% nickel) |
| Construction | Corrugated annular design with welded end fittings |
| Pressure Rating | 150 PSI maximum working pressure |
| Temperature Range | 32°F to 180°F continuous operation |
| Standard Lengths | 12", 18", 24", 30" (custom lengths available) |
| Thread Standards | NPT (National Pipe Thread) certified |
Always measure the offset distance between your water softener ports and supply lines before ordering. Order a connector 4-6 inches longer than your measured distance to account for the bend radius and to avoid kinking the corrugated stainless during installation.
Installation Speed
Complete typical water softener bypass installations in under 45 minutes without specialized tools or pipe preparation
Corrosion Immunity
304 stainless steel resists chlorine, minerals, and pH extremes that degrade brass and copper over time
Vibration Dampening
Flexible construction absorbs pump vibration and thermal expansion that causes rigid pipe joints to fail
