Sediment Filters — The First Line of Defense
Before water reaches your carbon filters, RO membrane, or appliances, a sediment filter removes the particles that cause clogging, wear, and cloudy water. The smallest investment with the biggest protective impact.
Sediment filters are the unsung workhorse of any water filtration system. By capturing sand, silt, rust, and suspended particles at the entry point, they prevent premature wear on carbon filters, RO membranes, and water-using appliances — saving you money on replacement parts and repair costs down the line.
The Basics
What Is a Sediment Filter?
Physical Filtration
Water passes through a porous filter medium — polypropylene, polyester, or pleated material — that physically traps suspended particles too large to pass through its pores.
Micron Rating
The micron rating defines the smallest particle a filter will capture. A 1-micron filter catches finer particles than a 50-micron filter. Lower number = finer filtration.
What It Removes
Sand, silt, dirt, rust flakes, scale particles, and other suspended solids. Sediment filters do not remove dissolved chemicals, chlorine, heavy metals, or bacteria — those require carbon or RO filtration.
Why It Matters
Even small amounts of sediment can clog RO membranes, reduce carbon filter capacity, and score valve seats. A sediment pre-filter is the most cost-effective way to protect your entire system.
Filter Types
Types of Sediment Filters

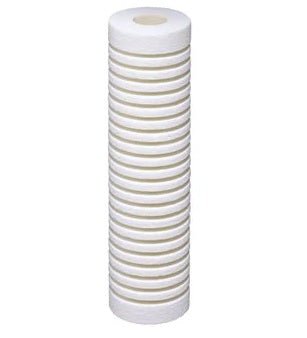

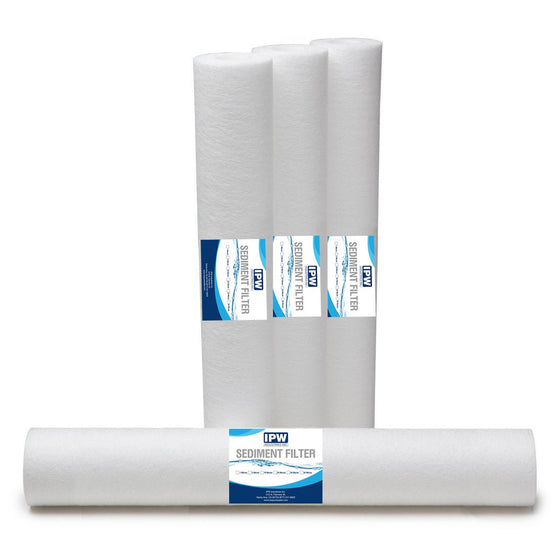

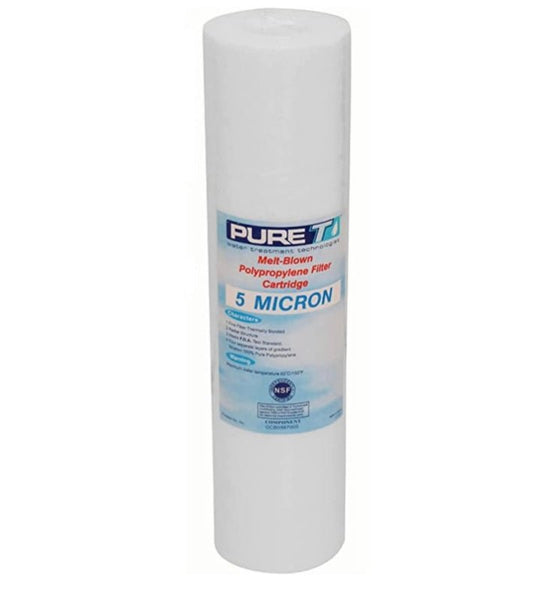

Melt-Blown (Spun) Filters
Made from polypropylene fibers spun into a depth-gradient structure. Fine fibers near the center, coarser fibers on the outside — trapping particles at multiple depths for high dirt-holding capacity. Best all-purpose sediment filter.
Pleated Filters
A folded filter sheet with a much larger surface area than melt-blown filters. Longer service life, lower pressure drop, and washable/reusable in some designs. Ideal for high-flow applications and lower sediment loads.

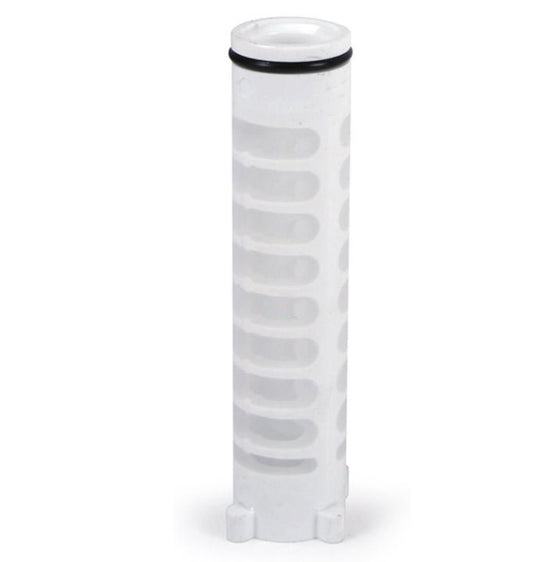

Spin-Down Filters
Uses centrifugal force to separate and collect larger particles from water flow without clogging a filter element. Flush-cleanable and ideal as a first-stage pre-filter on well water or irrigation systems with heavy sand or grit.
Screen / Mesh Filters
A woven polyester or stainless steel screen that captures particles above a set mesh size. Reusable and cleanable — well-suited as pre-filters for well water systems, irrigation, and outdoor applications.
For well water with heavy sediment: Use a spin-down or coarse screen filter first (50–100 mesh), then follow with a 5–20 micron melt-blown filter before your carbon or RO stage. This staged approach dramatically extends the life of your finer filters.
Sizing Guide
Choosing the Right Micron Rating
| Micron Rating | What It Captures | Best For |
|---|---|---|
| 0.35 – 1 Micron | Very fine silt, cysts, fine rust particles | Final pre-filter stage before RO membrane |
| 5 Micron ★ | Fine sediment, dirt, rust, sand | Most popular — RO pre-filter, under-sink systems |
| 10 – 20 Micron | General sediment, sand, moderate particulates | Whole-house first-stage, well water pre-filter |
| 25 – 50 Micron | Coarse sand, larger debris, scale flakes | First-stage pre-filter before finer stages |
| 100 – 1000 Micron | Large particles, gravel, coarse sand | Spin-down and screen filters, irrigation, well heads |
Don't go too fine too fast: Starting with a 1-micron filter on high-sediment water will clog it within days. Always use a staged approach — coarse first, fine second — to maximize filter life and maintain flow rate.
Where They're Used
Applications
Residential
Protects plumbing, water heaters, dishwashers, washing machines, and ice makers from sediment buildup and premature wear.
RO Pre-Filtration
Essential first stage in any reverse osmosis system. Prevents particulate damage to the membrane and extends its 2–3 year service life.
Well Water Systems
Well water often carries sand, silt, and iron particles. A sediment filter is the critical first barrier before any softener or treatment system.
Commercial — Food Service
Restaurants, cafes, and hotels rely on sediment filters to protect equipment and maintain water clarity for cooking, beverages, and ice.
Industrial & Manufacturing
Cooling towers, boilers, and process water systems require consistent sediment removal to maintain productivity and protect equipment.
Irrigation & Agricultural
Spin-down and screen filters protect drip emitters, sprinkler heads, and pumps from clogging with sand, grit, and organic debris.
Buyer's Guide
How to Choose the Right Sediment Filter
-
Know Your Water Source
City water typically has low sediment but may contain rust from aging pipes. Well water varies widely — test for iron, sand, and silt content before selecting a filter type and micron rating.
-
Match Micron Rating to Particle Size
Use 5–10 micron for general-purpose RO pre-filtration. Use 20–50 micron for whole-house first-stage pre-filters. Use coarse screen or spin-down filters (100+ mesh) for well water with visible sand or grit before any fine filter.
-
Consider Your Flow Rate
Ensure the filter's rated flow rate matches your household or system demand. A filter sized too small will cause pressure drop. Bigger-diameter filters (4.5" Big Blue) deliver higher flow with less restriction for whole-house applications.
-
Plan for Replacement Frequency
High sediment loads require more frequent changes. If you find yourself replacing a 5-micron filter monthly, add a coarser 20–50 micron stage upstream to extend the finer filter's service life.
Maintenance
Keeping Your Sediment Filters Performing
Replace Every 6–9 Months
Under typical conditions, replace sediment filters every 6–9 months. High sediment water may require changes every 2–3 months.
Watch for Visual Cues
Transparent filter housings make monitoring easy. A darkened or compressed filter element signals it's time for replacement — don't wait for flow to drop dramatically.
Monitor Pressure Drop
A significant drop in water pressure or flow rate at your faucet is a reliable sign that the sediment filter is saturated and needs replacement.
Use Pre-Filters in High-Sediment Areas
In areas with heavy well sediment or post-construction pipe disturbance, add a coarse upstream pre-filter to extend the life of your primary sediment filter.
Not sure which filter fits your housing? Our team can help match the right cartridge to your existing filter housing by size, micron rating, and end-cap configuration. Call (877) 541-6603 or email support@isopurewater.com.
Clearer Water
Removes visible particles that cause cloudiness and discoloration — the most immediate and visible improvement in your water quality.
Protects Appliances
Prevents sediment buildup in water heaters, washing machines, and dishwashers — extending their service life and reducing energy consumption.
Extends Filter Life
A good sediment pre-filter can double or triple the service life of your carbon filters and RO membrane by removing the particles that cause premature clogging.
Best Value in Filtration
At just a few dollars per cartridge, sediment filters deliver the highest return of any filtration investment — protecting hundreds of dollars of downstream equipment.
